Closed System for Media Bottles

Phone Number

+91 9108788989

Email

contact@biostarlifetech.com

Enquire Now

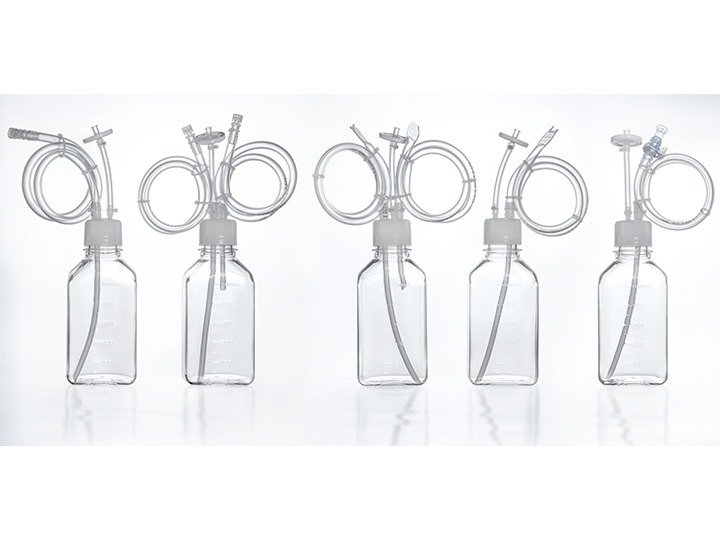

Closed System for Media Bottles

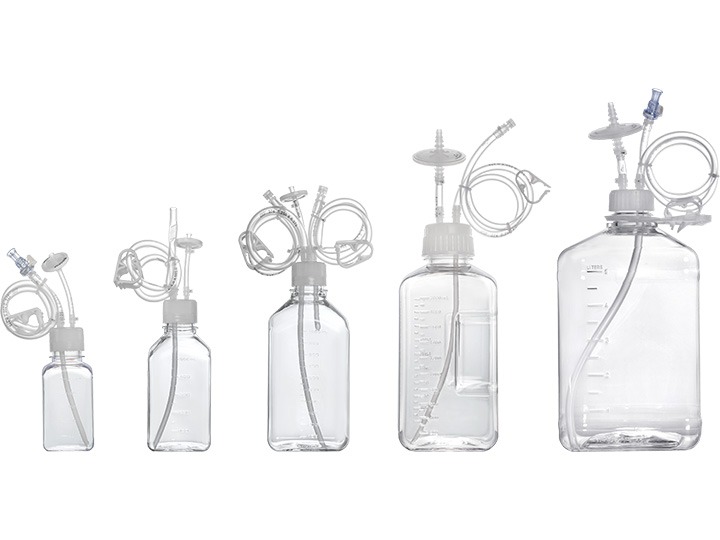

Specifications of matching media bottle: 250 mL 500 mL 1000 mL 2000 mL
Type of tube connector: MPC connector FLL connector Heat-sealing Port
Specifications of matching tubing: Two-port Three-port
Packaging: Double-layer outer medical packaging

Product Information

In the industrial production of biological products, reducing the potential risk of contamination during processes such as liquid transfer and sampling is crucial. Pairing media bottles with sterile transfer caps and tubing systems can effectively prevent contamination issues associated with open operations.
Jet Biofil has introduced Closed System for media bottles, made from USP Class VI-compliant materials, manufactured in GMP-standard cleanrooms. Products have extremely low extractable levels and excellent biosafety, suitable for fluid supplementation and low-temperature storage during the processes of cell & gene therapy, antibody and vaccine biopharmaceutical R&D. They enable fully enclosed aseptic liquid transfer, minimizing contamination risk to the greatest extent.

Customization Service

All Close System Solutions can be customized accordingly

Closed System for Media Bottles Features

Features

Crafted by materials comply with the USP Class VI standards with extremely low extractable levels and excellent biosafety

Injection molded transfer cap combines pinch clamp on inlet/outlet tubing to reduce the risk of leaks and residue

0.22µm PTFE syringe filter balances the internal and external pressure during liquid transfer while maintaining sterility

Features

Inner tube can be extended to the bottom to ensure complete transfer

Multiple tubing types and connectors are available to meet various pipeline connection requirements

Working temperature range: -80~60℃

Sterilized by irradiation, SAL 10-6; DNase/RNase-free, non-pyrogenic, non-cytotoxic

Material

Bottle

Polyethylene Terephthalate Glycol(PETG)

Bottle cap

High-Density Polyethylene (HDPE)

Inner tube

Polytetrafluoroethylene (PTFE)

Outer thermoplastic tube

Thermoplastic Elastomer (TPE)

FLL connector

Polypropylene (PP)

Male MPC connector

Polycarbonate (PC)

Filter housing

Polypropylene (PP)

Filter membrane

Polytetrafluoroethylene (PTFE)

Conforming to USP Class VI standards

Order Information

Cell and Tissue Culture Flasks , Non-treated

Cell and Tissue Culture Flasks, TC-treated

Cat. No.	Volume(mL)	Culture Surface Area(cm²)	Type of Cap	Recommended Working Volume(mL)	Maximum Working Volume(mL)	Length（mm）	Width（mm）	Height（mm）	Botte Neck Diameter（mm）	Sterile	Qty. Per Bag	Qty. Per Case
TCF011025	25	12.5	Plug Seal	2.5-3.8	8.0	73.7	40.4	22.8	14.2	Y	10	200
TCF012025	25	12.5	Vent	2.5-3.8	8.0	73.7	40.4	22.8	14.2	Y	10	200
TCF011050	50	25.0	Plug Seal	5.0-7.5	17.5	92.9	49.5	29.1	18.2	Y	10	200
TCF012050	50	25.0	Vent	5.0-7.5	17.5	92.9	49.5	29.1	18.2	Y	10	200
TCF011250	250	75.0	Plug Seal	15.0-22.5	60.0	152.5	81.5	35.2	25.0	Y	5	100
TCF012250	250	75.0	Vent	15.0-22.5	60.0	152.5	81.5	35.2	25.0	Y	5	100
TCF011150	375	150.0 (U-shaped)	Plug Seal	30.0-45.0	140.0	199.7	111.3	111.3	25.6	Y	5	50
TCF022150	375	150.0 (U-shaped)	Vent	30.0-45.0	140.0	199.7	111.3	111.3	25.6	Y	5	50
TCF011175	600	175.0	Plug Seal	35.0-52.5	250.0	199.9	122.7	49.2	25.7	Y	5	50
TCF012175	600	175.0	Vent	35.0-52.5	250.0	199.9	122.7	49.2	25.7	Y	5	50
TCF011600	600	182.0	Plug Seal	36.4-54.6	125.0	219.3	115.7	38.3	29.5	Y	5	40
TCF012600	600	182.0	Vent	36.4-54.6	125.0	219.3	115.7	38.3	29.5	Y	5	40
TCF111600	600	182.0 (Extended)	Plug Seal	36.4-54.6	200.0	219.3	115.7	49.5	29.5	Y	5	40
TCF112600	600	182.0 (Extended)	Vent	36.4-54.6	200.0	219.3	115.7	49.5	29.5	Y	5	40
TCF011225	850	225.0	Plug Seal	60.0-90.0	400.0	221.9	137.2	49.5	25.7	Y	5	25
TCF012225	850	225.0	Vent	60.0-90.0	400.0	221.9	137.2	49.5	25.7	Y	5	25
TCF011850	850	300.0	Plug Seal	60.0-90.0	200.0	269.2	166.0	47.0	29.5	Y	3	18
TCF012850	850	300.0	Vent	60.0-90.0	200.0	269.2	166.0	47.0	29.5	Y	3	18

CellATTACH® Cell and Tissue Culture Flasks

Cat. No.	Volume(mL)	Culture Surface Area(cm²)	Type of Cap	Maximum Working Volume(mL)	Length（mm）	Width（mm）	Height（mm）	Botte Neck Diameter（mm）	Sterile	Qty. Per Bag	Qty. Per Case
TCF001025	25	12.5	Plug Seal	8.0	73.7	40.4	22.8	14.2	Y	10	200
TCF002025	25	12.5	Vent	8.0	73.7	40.4	22.8	14.2	Y	10	200
TCF001050	50	25.0	Plug Seal	17.5	92.9	49.5	29.1	18.2	Y	10	200
TCF002050	50	25.0	Vent	17.5	92.9	49.5	29.1	18.2	Y	10	200
TCF001250	250	75.0	Plug Seal	60.0	152.5	81.5	35.2	25.0	Y	5	100
TCF002250	250	75.0	Vent	60.0	152.5	81.5	35.2	25.0	Y	5	100
TCF001150	375	150.0 (U-shaped)	Plug Seal	140.0	199.7	111.3	111.3	25.6	Y	5	8
TCF002150	375	150.0 (U-shaped)	Vent	140.0	199.7	111.3	111.3	25.6	Y	5	50
TCF001175	600	175.0	Plug Seal	250.0	199.9	122.7	49.2	25.7	Y	5	50
TCF002175	600	175.0	Vent	250.0	199.9	122.7	49.2	25.7	Y	5	50
TCF001600	600	182.0	Plug Seal	125.0	219.3	115.7	38.3	29.5	Y	5	40
TCF002600	600	182.0	Vent	125.0	219.3	115.7	38.3	29.5	Y	5	40
TCF101600	600	182.0 (Extended)	Plug Seal	200.0	219.3	115.7	49.5	29.5	Y	5	40
TCF102600	600	182.0 (Extended)	Vent	200.0	219.3	115.7	49.5	29.5	Y	5	40
TCF001225	850	225.0	Plug Seal	400.0	221.9	137.2	49.5	25.7	Y	5	25
TCF002225	850	225.0	Vent	400.0	221.9	137.2	49.5	25.7	Y	5	25
TCF001850	850	300.0	Plug Seal	200.0	269.2	166.0	47.0	29.5	Y	3	18
TCF002850	850	300.0	Vent	200.0	269.2	166.0	47.0	29.5	Y	3	18

Frequently Asked Questions

Size information of commonly used microwell plates?

The well plate size of this series conforms to ANSI/SBS well plate size standard, American National Standards Institute (ANSI ) and Society for Biomolecular Sciences (SBS, now affiliated to the Society for Laboratory Automation and Screening ( SLAS))

What is the chemical resistance of microwell plate?

In general, well plates are used for solution and cell culture. If organic solvents are involved, please confirm and verify the well plates according to the specific material of its before use.

What is the range of centrifugal force that the microwell plate can withstand?

We recommend that the centrifugal force not exceed 1,300 g. If there are other treatments affecting the mechanical strength of the well plate before centrifugation, the above suggestions may not be applicable. Please test and verify before use.

Does the deep well plate can be applied to cell culture?

It’s mainly used for sample treatment and preservation. The surface made of polypropylene has not been treated, and we have not tested it for cell culture. So it is recommended that you pre-test for specific applications and conditions before conducting relevant experiments.
