Vacuum Bottle Filters

Phone Number

+91 9108788989

Email

contact@biostarlifetech.com

Enquire Now

Membrane Pore Size: 0.10 μm 0.22 μm 0.45 μm
Membrane Type: MCE Nylon PVDF CA SFCA PES PES Express
Upper Cup Capacity: 150 mL 250 mL 500 mL 1000 mL
Resevoir Bottle Capacity: 150 mL 250 mL 500 mL 1000 mL

Product Information

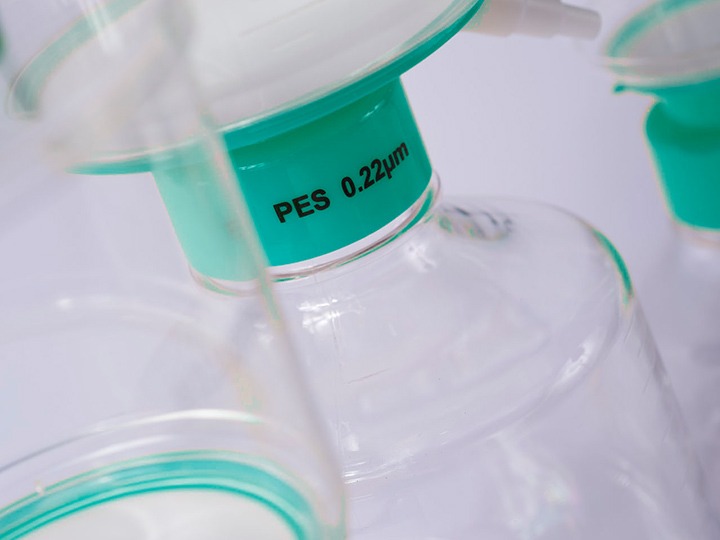

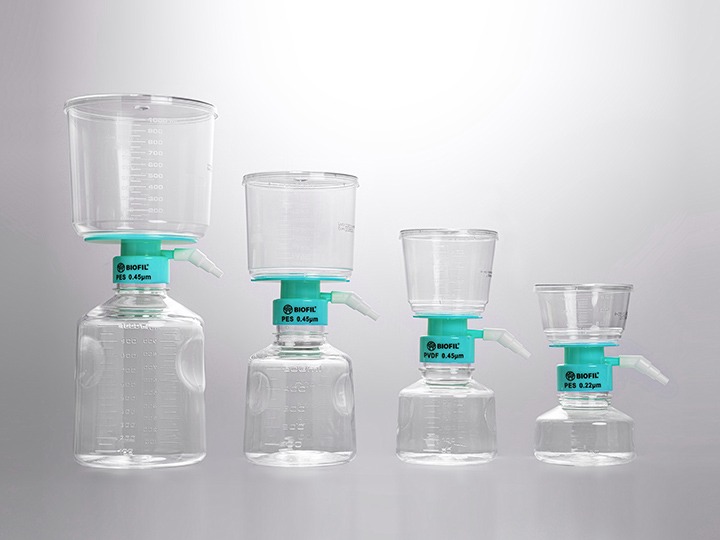

The vacuum bottle filters provide a pressure differential through a vacuum pump, and are used for large-scale filtration of tissue culture fluids and other laboratory solutions. The sample processing volume can be up to several liters, while the filtered sample can be directly stored in a sterile collection bottle. These products are ideal for sterile filtration of bases, buffers and reagents. A complete vacuum filter set is composed of an upper cup cover, an upper cup, a connector, a filter membrane and resevoir bottle.

Vacuum Bottle Filters Features

Features

A variety of membrane materials and specifications are available to satisfy different demands for customer applications

Sloped hose fittings make it easier to connect vacuum pipelines

The upper cup has a GL-45 thread and fits most glass and plastic media storage bottles

The easy-grip design on both sides of the reservoir bottle is ergonomic and makes the bottle easy to hold

Features

Good transparency, clear scale, easy to observe capacity

PES express has faster filtration and lower clogging rate

Each bag is printed with the product lot No. for quality traceability

Sterilized by irradiation, SAL 10-6

DNase/RNase-free, non-pyrogenic

Material

Upper Filter Cup and Reservoir Bottle

Polystyrene (PS)

Green Connector

Acrylonitrile-butadiene-styrene copolymer (ABS)

White Connector

Polypropylene (PP)

Conforming to USP Class VI Standards

Order Information

Cat. No.	Membrane Material	Pore Size (μm)	Capacity (mL)	Membrane Diameter (mm)	Qty / Bag	Qty / Case
FPV103150	PVDF	0.10	150	Φ50	1	12
FPV103250	PVDF	0.10	250	Φ50	1	12
FPV103500	PVDF	0.10	500	Φ75	1	12
FPV103000	PVDF	0.10	1000	Φ91	1	12
FPV203150	PVDF	0.22	150	Φ50	1	12
FPV203250	PVDF	0.22	250	Φ50	1	12
FPV203500	PVDF	0.22	500	Φ75	1	12
FPV203000	PVDF	0.22	1000	Φ91	1	12
FPV403150	PVDF	0.45	150	Φ50	1	12
FPV403250	PVDF	0.45	250	Φ50	1	12
FPV403500	PVDF	0.45	500	Φ75	1	12
FPV403000	PVDF	0.45	1000	Φ91	1	12
FMC201150	MCE	0.22	150	Φ50	1	12
FMC201250	MCE	0.22	250	Φ50	1	12
FMC201500	MCE	0.22	500	Φ75	1	12
FMC201000	MCE	0.22	1000	Φ91	1	12
FMC401150	MCE	0.45	150	Φ50	1	12
FMC401250	MCE	0.45	250	Φ50	1	12
FMC401500	MCE	0.45	500	Φ75	1	12
FMC401000	MCE	0.45	1000	Φ91	1	12
FPE104150	PES	0.10	150	Φ50	1	12
FPE104250	PES	0.10	250	Φ50	1	12
FPE104500	PES	0.10	500	Φ75	1	12
FPE104000	PES	0.10	1000	Φ91	1	12
FPE204150	PES	0.22	150	Φ50	1	12
FPE204250	PES	0.22	250	Φ50	1	12
FPE204500	PES	0.22	500	Φ75	1	12
FPE204000	PES	0.22	1000	Φ91	1	12
FPE404150	PES	0.45	150	Φ50	1	12
FPE404250	PES	0.45	250	Φ50	1	12
FPE404500	PES	0.45	500	Φ75	1	12
FPE404000	PES	0.45	1000	Φ91	1	12
FNY202150	Nylon	0.22	150	Φ50	1	12
FNY202250	Nylon	0.22	250	Φ50	1	12
FNY202500	Nylon	0.22	500	Φ75	1	12
FNY202000	Nylon	0.22	1000	Φ91	1	12
FNY402150	Nylon	0.45	150	Φ50	1	12
FNY402250	Nylon	0.45	250	Φ50	1	12
FNY402500	Nylon	0.45	500	Φ75	1	12
FNY402000	Nylon	0.45	1000	Φ91	1	12
FCA206150	CA	0.22	150	Φ50	1	12
FCA206250	CA	0.22	250	Φ50	1	12
FCA206500	CA	0.22	500	Φ75	1	12
FCA206000	CA	0.22	1000	Φ91	1	12
FCA406150	CA	0.45	150	Φ50	1	12
FCA406250	CA	0.45	250	Φ50	1	12
FCA406500	CA	0.45	500	Φ75	1	12
FCA406000	CA	0.45	1000	Φ91	1	12
FPE234150	PES Express	0.22	150	Φ50	1	12
FPE234250	PES Express	0.22	250	Φ50	1	12
FPE234500	PES Express	0.22	500	Φ75	1	12
FPE234000	PES Express	0.22	1000	Φ91	1	12
FPE434150	PES Express	0.45	150	Φ50	1	12
FPE434250	PES Express	0.45	250	Φ50	1	12
FPE434500	PES Express	0.45	500	Φ75	1	12
FPE434000	PES Express	0.45	1000	Φ91	1	12
SCA207150	SFCA	0.22	150	Φ50	1	12
SCA207250	SFCA	0.22	250	Φ50	1	12
SCA207500	SFCA	0.22	500	Φ75	1	12
SCA207000	SFCA	0.22	1000	Φ91	1	12
SCA407150	SFCA	0.45	150	Φ50	1	12
SCA407250	SFCA	0.45	250	Φ50	1	12
SCA407500	SFCA	0.45	500	Φ75	1	12
SCA407000	SFCA	0.45	1000	Φ91	1	12

Frequently Asked Questions

What is the maximum rotational speed that the centrifuge tubes of Jet Biofil can withstand?

21000xg. Due to the different center distance of the rotor shaft of different centrifuges, the centrifugal force generated at the same speed (rpm) is also different, so we usually use the relative centrifugal force (RCF) (g) to represent the tolerance degree of the centrifuge tube in the process of rotating centrifugation.

Can the centrifuge tubes of Jet Biofil hold some kind of solution? How about its chemical compatibility?

It is necessary to pay attention to whether the sample is compatible with the material of the centrifuge tube as is used, especially if the sample is some chemical reagents or organic solvents, and the Chemical Compatibility Table of PP Plastic Materials can be used as reference. Samples with low or incompatible centrifugal compatibility are not recommended, and customers can also do pre-experiments to have a test.

What is the possible reason for the burst of the centrifuge tubes in the process of centrifuge?

When centrifuging, it is necessary to pay attention to the chosen centrifugal force cannot exceed the maximum centrifugal force that the product itself can withstand.

Please notice that the maximum centrifugal force (RCF) that can be withstood may be decreased when the sample is centrifuged at low temperature or the sample is an organic solvent/volatile irritant

What should be pay attention to when using the centrifuge tubes to preserve the samples at a low temperature?

When the sample is preserved below 0 ℃, the applicability of the centrifuge tube is closely related to the composition of the solution and preservation conditions. The centrifuge tube cannot be placed on the foam support, nor the bottom of the tube is in contact with the thermal insulation materials. And please use a hollow support when preserving the samples at low temperature. Otherwise, as part of the centrifuge tube is protected by thermal insulation material, while the other part is not, the temperature difference of the overall tube body makes the tube prone to burst. In addition, please reserve a space of at least 10% of the total volume to avoid sample spillage or tube burst caused by volume expansion due to liquid solidification.

Why the centrifuge tube smell special when its package is opened?

If you smell some odor in the product you receive, it is not because of the abnormal quality of the product. This is because some molecules will be vaporized and retained in the product/packaging in the process of high temperature injection molding/irradiation sterilization of the raw material plastic particles of centrifuge tube products.

The materials used for making the centrifuge tubes of Jet Biofil comply to the USP Class VI standards (USP Class VI Chapter, "Biological reactivity Tests, in Vitro" and Chapter, "Biological Reactivity Tests, in vivo”). No cytolysis or cytotoxic effects were observed through the verification. And the outgoing products in the process of quality inspection have passed various verification tests and are in line with the product release standards.
